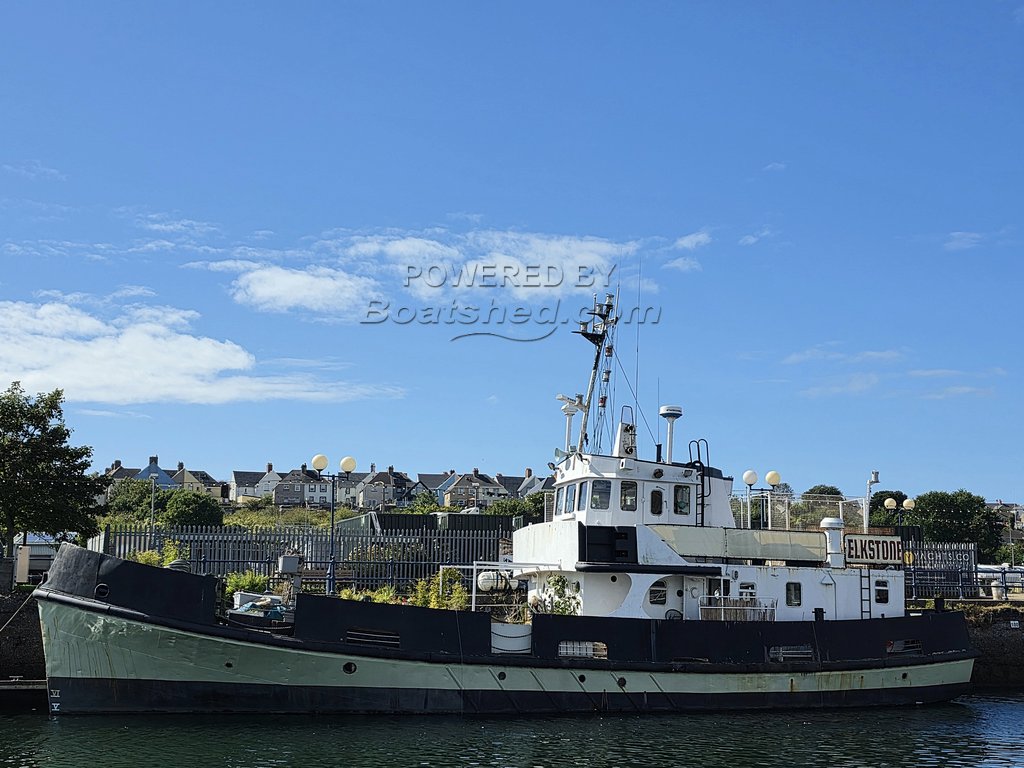

Royal Navy Clovelly Class Converted RMAS Fleet Tender
What An Opportunity!!
- Boat REF# · 352244
- LOA · 23.10m
- Year · 1970
- Construction · Steel
- Underwater profile · Full-displacement
- Berths · 11
- Engine · 1 x Diesel 330hp, Lister Blackstone ERS4MGR (1970)
- Lying · Milford Marina
Extra Details
| Designer | Royal Maritime Auxiliary Service- Fleet Class |
|---|---|
| Builder | James W. Cook & Co. (Wivenhow) Ltd. |
| Lying | Milford Marina |
| Fuel capacity | 2,000.0 ltr (440.0 G) Total - 2 Tanks |
| Water capacity | 1,000.0 ltr (220.0 G) Total - 1 Tanks |
| Last survey | 26/08/2021 |
Mechanical
| Engine | 1 x Diesel 330hp |
|---|---|
| Engine make and model | Lister Blackstone ERS4MGR (1970) |
| Engine Hours | Not Recorded |
| Engine Cooled | Indirect |
| Steering | Wheel |
| Drive | Shaft |
| Prop(s) | 3 blade fixed |
| Fuel consumption (approx) | Not Recorded |
| Cruising speed (approx) | 7 knots |
| Max speed (approx) | 10 knots |
The engine is located within a large engine room, access is via steel door and metal stairwell.
There is a single Perkins 6-cylinder DC generator fitted with exhaust funnel.
Both the engine and the generator appear visually sound and well maintained. The engine and generator are run often, and have been attended to by a professional marine engineer at regular intervals.
The electrical system supplies 12v, 24v and 240v systems, both Ac and DC.
There is a large battery bank consisting of 8 batteries in total.
There is a main electrical panel in the engine room consisting of heavy-duty Bakelite fuses.
there is a Victron Energy Multiplus- ll charger/inverter fitted in the engine room.
Dimensions
| LOA | 23.10m |
|---|---|
| Beam | 6.80m |
| Draft Min | 2.00m |
| Draft Max | 2.20m |
| Airdraft | 8.00m |
| Displacement | 170,000kg (374,850.0lbs) |
| Headroom | 3.00m |
| Storage | On marina |
Electrical Systems
12 volt battery, 240 shore power voltage, 8 batteries charged by: engine, shore power, generator
Construction
| Construction | Steel |
|---|---|
| Underwater profile | Full-displacement |
| Finish | Paint finish |
Originally built and classified to Lloyds 100A1
Hull bottom 10mm steel (professionally over plated-2023)
Hull sides 8 mm steel
Galvanic isolator fitted
Accommodation
| Total # of berths | 11 |
|---|---|
| No. of double berths | 3 |
| No. of single berths | 5 |
| No. of crew berths | 3 |
| Cabin(s) | 4 |
| Handbasin | 2 |
| Shower | 1 |
| Heads | 2 heads () |
Both heads are plumbed in with automated liquid separation and composting systems.
The main heads has a large full size bath fitted- as photographed.
There are a series of bunk berths in the very forward compartment- this area is currently used for storage. the berths have not been included in the total number available aboard.
There is a separate hatch and ladder access, as well as internal access to this area.
4 burner Electric cooker/stove
Accommodation
| Cooker/stove | |
|---|---|
| Grill | |
| Oven | |
| Sink | |
| Refrigerator | |
| Freezer | |
| Carpet | |
| Curtains | |
| Cabin heating | |
| Pressurised water system | |
| Hot water system |
Both heads are plumbed in with automated liquid separation and composting systems.
The main heads has a large full size bath fitted- as photographed.
There are a series of bunk berths in the very forward compartment- this area is currently used for storage. the berths have not been included in the total number available aboard.
There is a separate hatch and ladder access, as well as internal access to this area.
4 burner Electric cooker/stove
Deck Gear
| Sun awning | |
|---|---|
| Warps | |
| Fenders | |
| Instrument Covers | |
| Cockpit Enclosure |
Admiralty Type windlass
2 anchors
(Admiralty pattern anchor with chain. Spare anchor on port rail)
200.00m of chain
Air pipes
Ventilator pipes
Breathers
Hidroirma AK1402 with 540kg lift at 6.44m Hiab- fitted amidship
Tow hook- believed to be seized
Nav Equipment
| Compass | |
|---|---|
| Speed | |
| Log | |
| Radar | |
| VHF DSC radio | |
| GPS | |
| Chart plotter | |
| Clock | |
| Barometer | |
| Navigation lights | |
| TV | |
| WiFi Booster | |
| Echo sounder |
Call Sign- 2GUW4
2x independent radar systems with scanners and displays.
Furno GPS and Navnet systems.
Demek RS8000 VHF
Electric log
AB Precision digital depth repeater.
Safety Equipment
| Life buoys | |
|---|---|
| Searchlight | |
| Horn | |
| Boarding ladder | |
| Emergency steering |
6 bilge pumps (2 manual / 4 Electric)
There is a comprehensive bilge system throughout the vessel
There are additional electric emergency pumps onboard
Broker's Comments
Boatshed Wales are delighted to present this rare and truly unique opportunity to bring Elkstone to the market.
Elkstone is a 23-metre ex-Royal Navy Clovelly Class Tender, built in 1970 to the exacting Lloyd’s 100A1 specification. Designed and constructed for strength, durability and versatility, she would originally have been tasked with personnel transfer, cargo carrying, towing, harbour assistance and supporting warships in dock.
In recent years, Elkstone has undergone the second stage of a full professional residential refit, including substantial interior works carried out by Mainstay Marine.
While sympathetically retaining many of her original features and character, the former holds and cargo spaces have been completely transformed into warm, comfortable and light-filled living accommodation. The current layout includes a forward cabin with twin double and single berths, generous studio and lounge areas, and a full-size bathroom complete with a high-sided bath.
Outside, Elkstone offers exceptional deck space.
The aft upper deck provides an expansive area with ample room for dining, leisure seating, a hot tub or simply relaxing and enjoying the sunshine. It would make an ideal entertaining space for hosting friends and family, or enjoying a drink while watching the sun set.
The foredeck offers equally exciting potential for further development and could accommodate a wide range of uses. Currently arranged as a tranquil garden space, it is beautifully planted with a multitude of plants and flowers, creating a surprisingly peaceful environment aboard this substantial working vessel.
The wheelhouse retains its commanding position and provides excellent forward visibility, with doors to both port and starboard giving access to the side decks.
Perhaps the most unique aspect of Elkstone is the combination of substantial, beautifully converted residential accommodation with the continued ability to operate and relocate the vessel if required. This is not simply a static houseboat; she remains a capable vessel with the potential to embark on a new chapter elsewhere.
Currently berthed at Milford Marina, Elkstone has permission to retain her current berth. Pembroke, 6 miles upriver, benefits from commercial lifting facilities and local workshops equipped to undertake work on a vessel of this size and construction.
Equally, should a new owner wish to relocate her, Elkstone retains that potential.
This is a fascinating and highly individual opportunity, equally suited to those looking for a substantial liveaboard, a unique waterside home, a potential world explorer, or an innovative commercial enterprise.
Elkstone offers space, history, character and capability in equal measure — and opportunities of this nature rarely come to market.
Boatshed Wales warmly welcomes all serious enquiries and strongly recommends an early viewing to fully appreciate the scale, character and potential of this remarkable vessel.
These boat details are subject to contract.
Note: Offers on the asking price may be considered.
